Zilla

20ft Igniter Angled Light Box Package

20ft Igniter Angled Light Box Package

Regular price $7,816.00 USD
Regular price Sale price $7,816.00 USD
Sale Sold out
Shipping calculated at checkout.
Ownership

Lead Time: 10 days - Production lead time begins AFTER final proof approval and excludes order processing time.

Due to the shipping properties for this product, Zilla will evaluate the best shipping method for your order and invoice the cost of shipping post purchase. Or click here to receive a custom shipping estimate. We appreciate your understanding!

Description

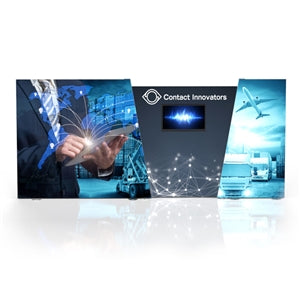

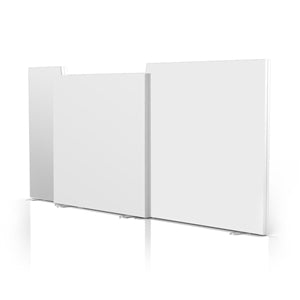

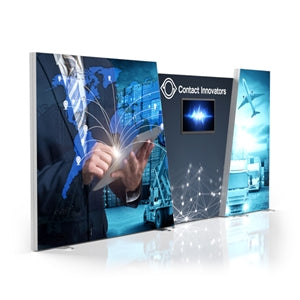

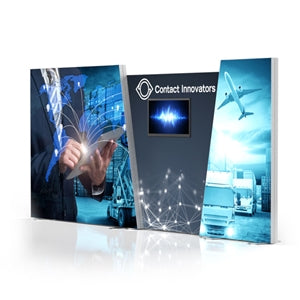

This product includes:

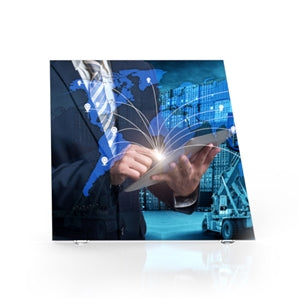

  • (1) Angled Igniter 108" X 96" right side with graphics and backer
  • (1) Square Igniter 94" X 90" center with graphics and backer

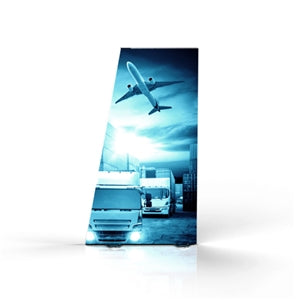

  • (1) Angled Igniter 55" X 96" left side with graphics and backer

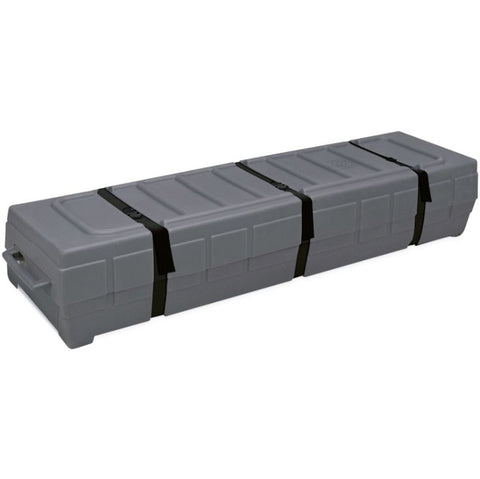

  • (3) Large shipping cases with wheels
  • (1) Large monitor mount
  • (1) Torx wrench
  • (1) Allen wrench
LED light strip information:
  • Each Module contains five LED lights
  • Input voltage (V): DC24±0.5
  • Power Consumption (W): 10W
  • Material: AL base plate
  • Specification (mm): 360mm*23mm*16mm
  • Lamp type: Epistar
  • Color temperature (K): 3000K~7000k
  • Beam angle(*): 20*60* / 10*45*
  • Luminous flux (lm): ≥750LM
  • Lifetime: ≥20000H
  • Protect rate (IP): IP25
Specifications
  • TLI55X96 (Right Side Panel)
    • Frame Depth: 4.6875"
    • Display Dimensions: 55"(W) x 96"(H) x 22.75"(D)
    • Weight: 100 lbs.
    • Amps: 7.20
    • Watts: 172.80
  • TLI94X90 (Middle Panel w/ Monitor Mount)
    • Display Dimensions: 94"(W) X 90"(H) X 22.75"(D)
    • Weight: 106lbs.
    • Amps: 7.20
    • Watts: 172.80
  • TLI108x96 (Left Side Panel)
    • Display Dimensions: 108"(W) X 96"(H) X 22.75"(D)
    • Weight: 111 lbs.
    • Amps: 8
    • Watts: 192
  • Xhibit Case Dimensions: 68.5"(W) x 12"(H) x 18"(D)
    Downloads

    Setup Instructions

    Templates

    Most recent templates provided by Zilla upon order.

    To get the templates in advance, please contact us here.
